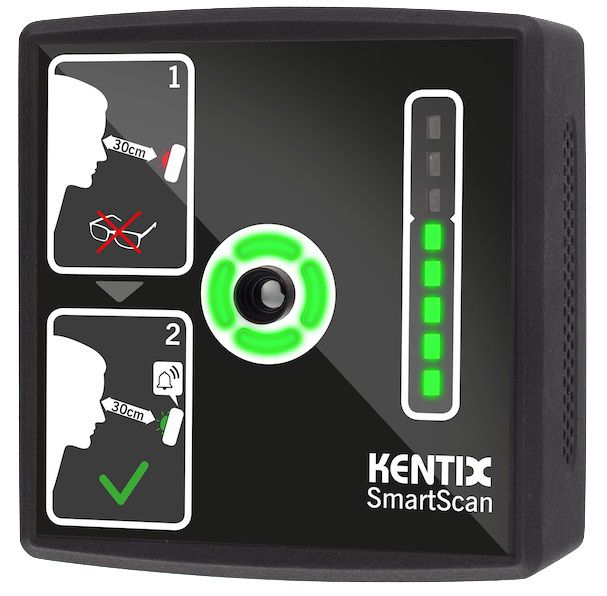

KENTIX SmartXcan

Contactless body temperature measurement, no contact contamination.

Contact us

Simple user guidance

No operating personnel is necessary for the use. The measurement is confirmed optically and acoustically within only 0.6 seconds. The whole process of approaching the SmartXcan, measuring and stepping away takes about 3-5 seconds. The LED bar shows the result directly with GREEN or RED. Depending on the setting, the LED bar can also display three temperature ranges, such as elevated temperature, fever or high fever.

Precise measuring process thanks to intelligent sensor technology

1024 sensors measure the temperature at many points of the eyes and forehead. Due to the defined and always the same process, we achieve a much more reproducible measurement than comparable methods. Additional deep-learning algorithms are used to continuously teach the thermal image and optimize the measurement process. With more than 1,000 measured values, the result is a reliable statement of body temperature.

Odoo • Text and Image

Complete system

The Kentix SmartXcan Sensor is supplied as a complete set. Wall bracket, mounting material and covers are included in the delivery. For commissioning, only a network connection with Power over Ethernet (PoE) is required. Via the network connection and the integrated HTTPS web server, the device can be accessed at any time by PC, tablet or smartphone. Configuration changes or updates can thus be carried out easily. The administration of several devices, including the distribution of the configuration, is also possible without any problems.

Compact dimensions, easy mounting

The sensor, measuring only 120x120x47mm, is supplied with a lockable wall mounting bracket and cable cover. The sensor is ideally mounted at a height of 110-120cm.




Safe

  • Contactless body temperature measurement

  • DSGVO-compliant operation possible, through self measurement

  • High precision measurement, over 1,000 measuring points

  • Manipulation protection through intell. Thermal image analysis

Intuitive

  • Self-explanatory user guidance through intelligent sensor technology

  • Simple and flexible mounting

  • Live control via web browser for doormen

  • Automatic control of doors or turnstiles

Quick

  • Fast measurement in less than 1 second

  • High throughput, up to 700 persons/hour

  • Early detection of regionally emerging fever hotspots

  • Plug & Play installation through PoE connection

Temperature measurement

Always constant and defined measuring process and measuring distance

GDPR compliance

No staff required, automated and intuitive measurement, simple self measurement

Investment costs

Low purchase, installation and operating costs
