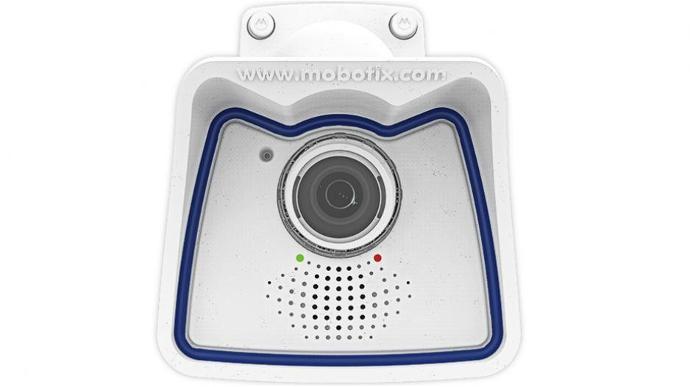

MOBOTIX outdoor camera M26 Allround

Solid. For Every Application


Contact us

Our proven all-purpose camera system for mounting on ceilings, walls and poles also easily meets the demanding requirements of protection classes IP66 and IK10. The M26 features the latest 6MP technology and can be used for an especially broad range of applications, thanks to the comprehensive choice of lenses available.

  • Mx6 system platform with H.264 and ONVIF compatibility
  • Recording on an internal MicroSD card (4 GB as standard)
  • Integrated microphone and speaker
  • Large choice of lenses with viewing angles from 8° to 180°
  • MxAnalytics Video Analysis tools as standard
  • Integrated temperature sensor
  • Weatherproof, fiber-glass reinforced external housing (IP66, IK10)
  • Suitable IR illuminator (PoE+) available as an option

Variants

The Robust Allround Camera (IP66, IK10, -40 to 50°C (-40 to 122°F))

The M26 is available as a hemispheric model with a 180° lens and as a body with a color or B&W image sensor (day/night) as standard. Our HD Premium lenses with coverages of 8°, 15°, 31°, 45°, 60°, 90° and 103° can be easily screwed into the body. The lens cover cap is also available with a glass pane instead of a plastic one.

Hemispheric

M26 With 180° x 180° Special Lens

The B016 lens makes it possible to monitor the entire entrance area with a single M26 mounted above the door. This means there is no need to install multiple standard cameras, and considerably reduces overall system costs. The perfect overview image can be displayed for each application (panorama, focus, quad view...).

VarioFlex

Standard Wall And Ceiling Mount

Thanks to the VarioFlex mounting system, the camera can be installed on any wall, ceiling or even a round pole of up to 18 cm in diameter (when combined with an optional stainless steel pole mount). The VarioFlex mounting system allows a wide range in both the horizontal and vertical directions (rotating and tilting) to enable precise adjustment to the area to be monitored. The concealed cabling improves the security of the installation.

Anti-Theft Protection

Safety Screw Set With Adapter

Using the safety screw set for screw anchors (four pieces, 6x50) and machine taps (four pieces M6x15, four pieces M6x30), which is available as an accessory, enables theft-proof mounting of the base of the VarioFlex mount. The supplied adapter fits into conventional drill spindles. Order number: MX-OPT-SEC-SCREWS-SET.

Intercom

Global Two-Way Communication Possible

The M26 continues to feature a microphone and speaker, providing integrated 2-way VoIP with digital-quality, lip-synchronous audio and video. Ideal for announcements and conversing with persons in front of the camera. Accessible via an Internet connection from anywhere in the world using a PC with MxManagementCenter, a VoIP phone, a smartphone or a tablet.
