MOBOTIX outdoor M73 High Performance IoT Camera

3 Modules - Compact and Powerful in One Housing


Contact us

The M73 is the pioneer of the MOBOTIX 7 generation. The IoT video system sets standards as a compact power pack. Intelligent flexible and versatile. All in the tradition of the MOBOTIX company. And yet completely unique.

Rigorously compact and powerful with 3 modules

Brilliance. Intelligence. Excellence. The M73 impresses with the latest high-performance system technology and modular MOBOTIX App support. It is a camera that is second-to-none in terms of performance, functionality, cyber security and edge computing. All in all, an uncompromisingly compact camera with brilliant vision and a great look — designed by Eskild Hansen.

Highlights

M73 as High-End Thermal Imaging Camera

Thanks to the increased number of pixels with the VGA thermal modules, even more details can be detected, even larger areas can be covered (perimeter protection) and temperature differences can be recorded from even greater distances.

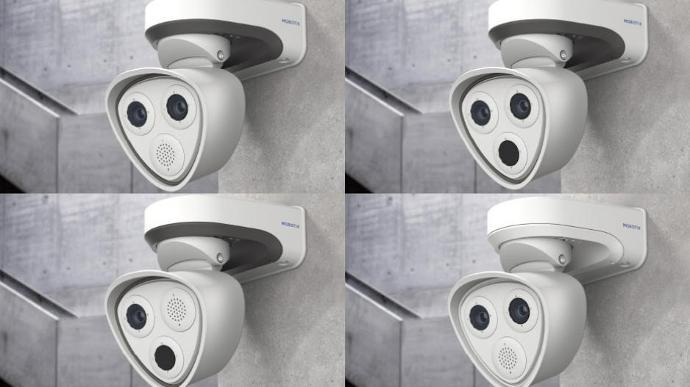

3 Modules in One Camera

  • Up to 3 function and optical modules for easy self-assembly
  • Image sensor: 4K/8MP (Tele, Standard and Wide Lens): Color (day), B+W (night) or color with a moving IR cut filter (day + night)
  • WORLD FIRST: Ultra LowLight 4 MP sensor module with around four times greater light sensitivity than 4K UHD
  • Horizontal image angle from 120° to 15° (depending on module)
  • IR Light module (850 nm, variants for Tele, Standard and Wide Lens)
  • MultiSense module (PIR, temperature, brightness, microphone)
  • Audio module (Microphone & speaker)

Brilliant Image Quality

  • 4K UHD resolution, max. image size: 3840 x 2160 px, 16:9
  • WORLD FIRST: Ultra LowLight 4 MP with superior SRV (signal to noise ratio) of 0.19 – around four times greater light sensitivity than 4K UHD, max. image size 2680 x 1520 pixels, 16:9
  • WDR: 120 dB
  • Max. frame rate (H.264): 30fps@4K
  • Max. frame rate (MxPEG+): 20fps@4K

Performance & Efficiency

  • Quad-Core ARM Cortex-A53 (up to 1,300 MHz)
  • Max. power consumption: 25 W
  • Power supply via network cable PoE Class 4 (IEEE 802.3at)
  • Internal DVR (8 GB microSD, optionally expandable)

Standards & Video Formats

  • ONVIF Profile S and T
  • H.264 and H.265 Triple Streaming
  • MxPEG+ (for license-free use of the M 73 in MxMC from version 2.2)
  • MJPEG

High Robustness

  • Ambient temperature: - 40 to + 65°C
  • Protection classes: IP66 and IK07
  • Housing: Aluminum and PBT-30GF
  • MTBF (Mean Time Between Failures): more than 9 years
  • 3-year warranty (optionally extendable to 8 years)

Simple Mounting - Uncompromisingly Compact

  • Wall or pole mounting, inside and outside
  • Plug & play: Optical modules already in focus ex works and interchangeable without camera mounting
  • Motherboard accommodated in a high-tech housing made from powder-coated aluminum
  • No active cooling is required. The heat generated is dissipated to the outside via the metal.
  • Available in two different colors.
