MOBOTIX Thermal Technology
Making heat visible for optimum fire protection, all-round safety and higher profitability
MOBOTIX thermal technology makes both heat and cold visible. It is an indispensable tool for fire protection and ensuring the safety of people and objects. These thermal cameras also keep track of complex processes, such as production and processing, which saves money and boost profits.

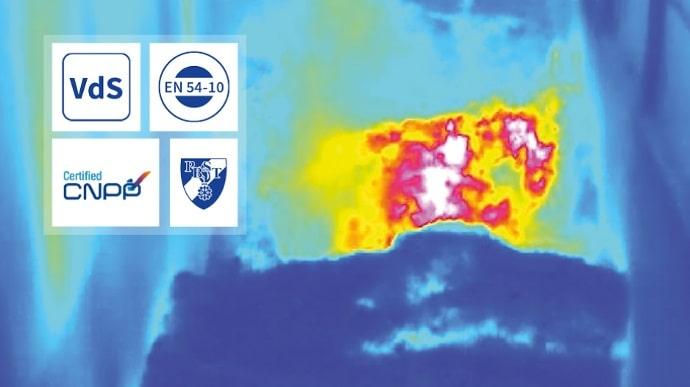

Thermal Technology for Early Fire Detection
- Protect people, facilities and goods
- Certified by leading fire protection experts
- Detect fires even before flames occur

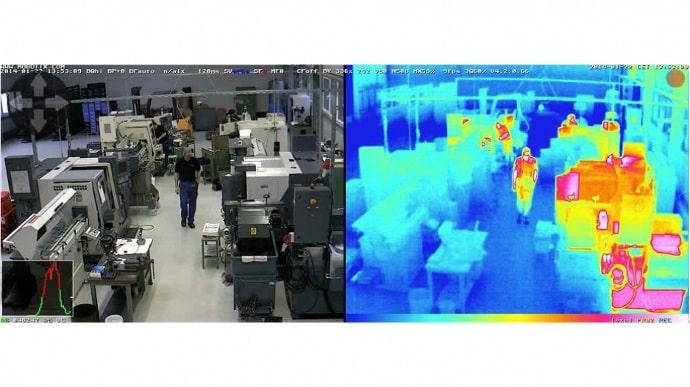

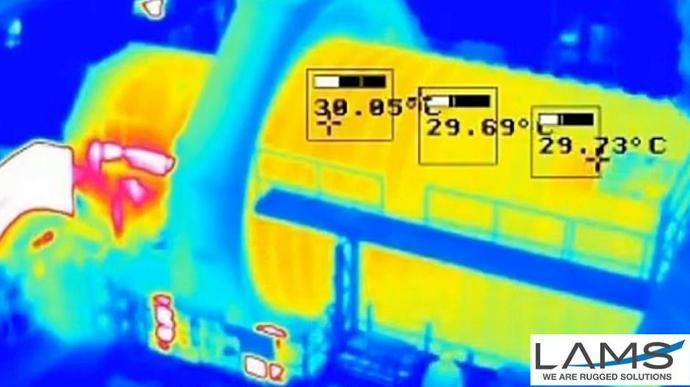

Thermal Technology for Quality Assurance
- Check and ensure product quality
- Monitor processes and temperatures
- Preventive maintenance of machines

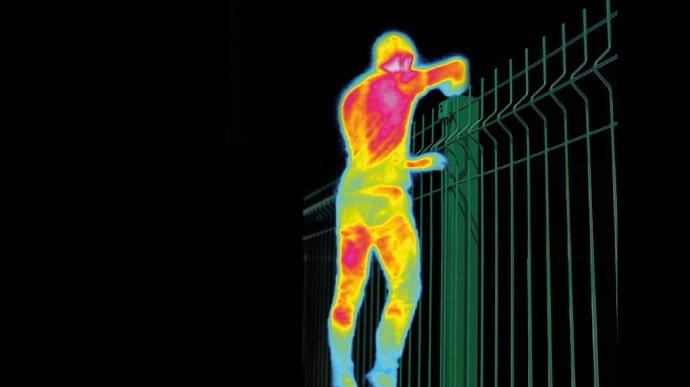

Thermal Technology for Security
- Detect intruders, even in complete darkness
- Data-protection-compliant monitoring
- Energy-efficient, economical solution
Learn more about Mobotix thermal cameras

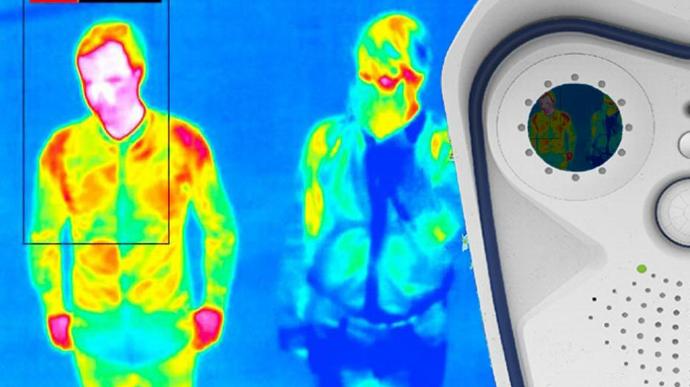

This is How MOBOTIX Thermal Imaging Technology Works
Thermal imaging is a contactless imaging process that makes it possible to see infrared heat radiation otherwise invisible to the human eye. Temperatures are usually displayed on a scale from red (hot) to yellow (warm) to blue (cold). Other possible displays include black-and-white or false colors such as amber. This is often used in perimeter protection to easily detect moving people in any lighting situation.
Thermal TR technology
Thermal cameras with integrated TR (thermal radiometry) technology measure thermal radiation across the entire image area and assign a temperature value to each pixel. These precise measured values are used to trigger an event (e.g. alarm or network message) if the value exceeds or falls short of an individually adjustable threshold value. To increase measurement accuracy, a black body radiator is recommended to obtain an exact reference value comparison (emissivity of objects).
MOBOTIX Advanced Radiometry App
Extremely Flexible — Extremely Accurate
The intelligent MOBOTIX Advanced Radiometry app can be used to define up to 20 individual measuring ranges in a single camera image in conjunction with a MOBOTIX TR sensor. This is beneficial, for example, when individual levels of emissivity must be calibrated because the image contains various materials that reflect heat differently.

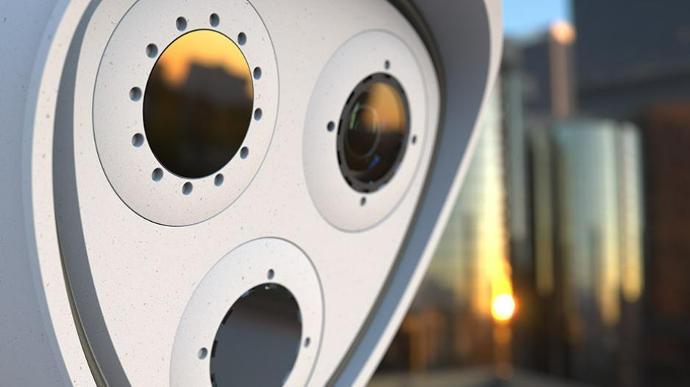

M73 as High-End Thermal Imaging Camera
The MOBOTIX 7 camera M73 can now be equipped with 50 mK thermal sensor modules – even retroactively! Thanks to the increased number of pixels with the VGA thermal modules, even more details can be detected, even larger areas can be covered and temperature differences can be recorded from even greater distances.

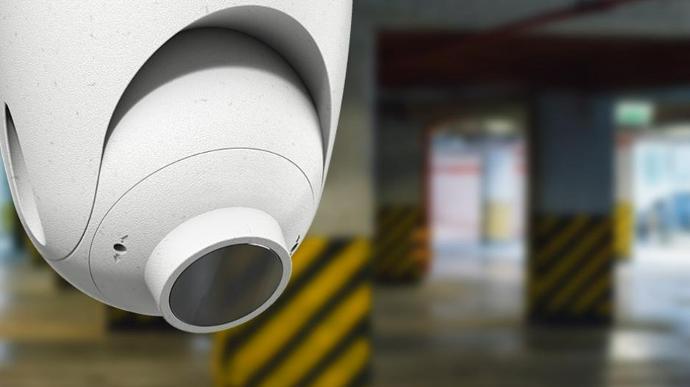

S74 – The Flexible Thermal Camera
The S74 with thermal sensor modules is the flexible MOBOTIX thermal camera. The modules (CIF or VGA) are flexibly connected to the concealed camera housing with cables up to three meters in length. This allows both special installations as well as efficient surveillance of several areas with just one camera.

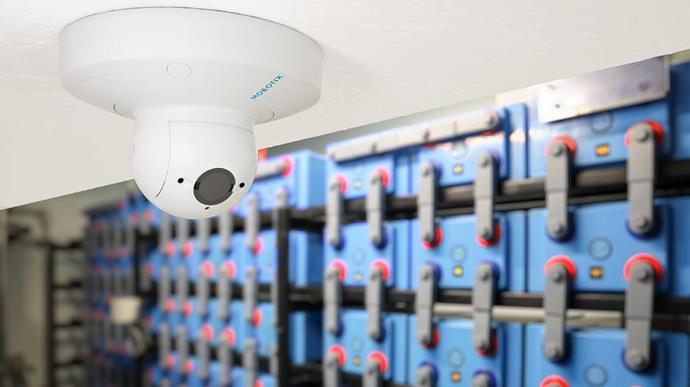

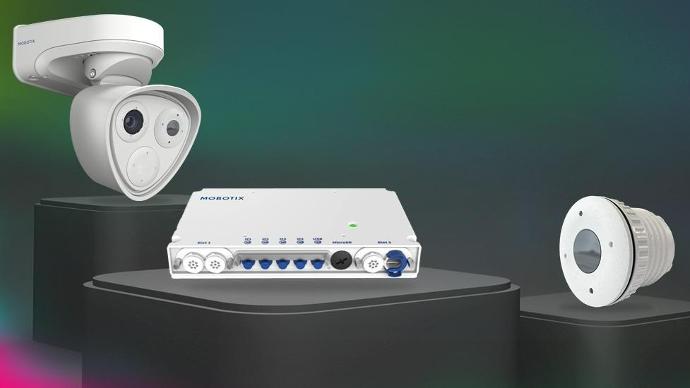

p71 Thermal ECO
The p71 Thermal ECO camera offers you the low-cost basic indoor thermal solution with the wide viewing angle for object protection or in temperature monitoring.
MOBOTIX Thermal ECO
MOBOTIX Thermal ECO modules provide you with a low-cost basic thermal solution with a wide viewing angle. Reliably cover a whole range of basic applications, for example in perimeter protection. The molded modules fit flexibly on any MOBOTIX M73 module connector and for all S74 mounts.

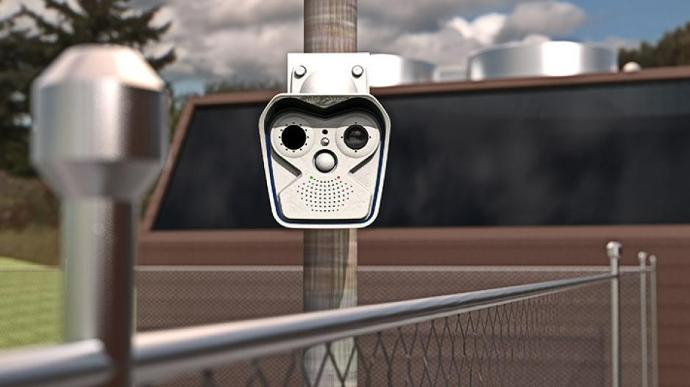

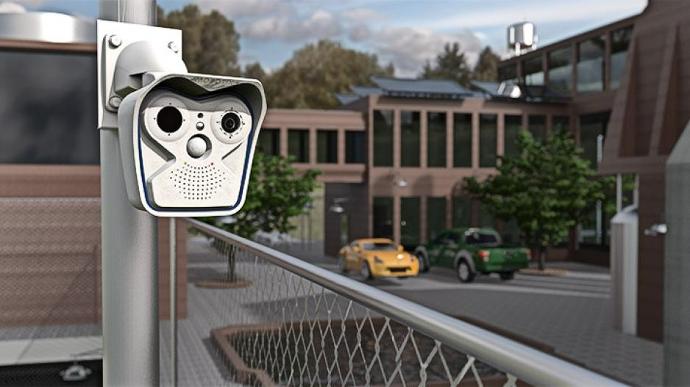

M16 Thermal
The intelligent video system with an integrated high-performance thermal image sensor takes full advantage of the M16 camera design. Thanks to the two directly adjacent lenses, there is also a thermal overlay function with image overlay (thermal and optical) to pinpoint the exact location of hotspots like smoldering fires in a visible image.
M16 Thermal TR
“TR” stands for thermal radiometry. This means that, in addition to carrying out the existing MOBOTIX thermal camera functions, these cameras feature a calibrated thermal image sensor that enables them to measure thermal radiation across the entire image area, even down to individual pixels. The power consumption of a MOBOTIX Thermal TR is less than 8 watts.

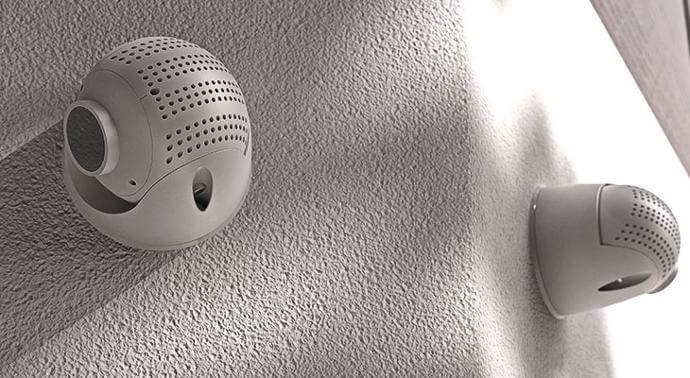

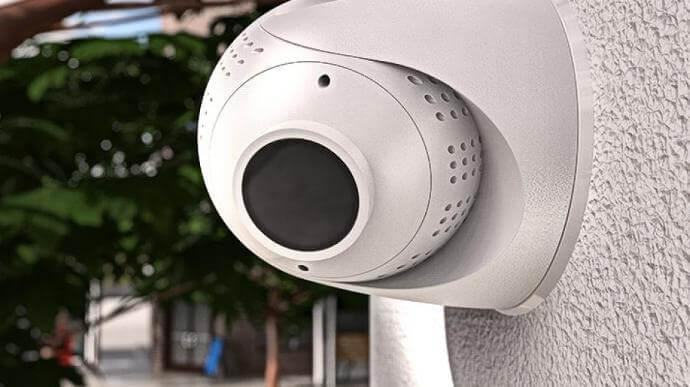

S16 Thermal
MOBOTIX present the most flexible dual thermal camera in the world. It is possible to connect either one or two weatherproof thermal sensor modules to the easily concealable camera module with up to three-meter-long sensor cables. The design concept of the S16 means that even thermal cameras can have particularly discreet installations and customer-specific special installations.
S16 Thermal TR
Temperature values measured by the TR technology can automatically trigger an event from the camera (alarm, call, activation of a signal output etc.) if the temperature increases above or decreases below an individually set trigger level. All settings can be adjusted via the camera firmware using a web browser.
